I2S/DSD over HDMI
Support up to DSD512
THE ULTIMATE EXPRESSION OF PRECISION
Preciso is Volumio’s ultimate expression of what a DAC can and should be. It is the result of obsessive engineering, relentless refinement, and a singular goal: to deliver the purest, most precise audio signal without breaking the bank. Preciso is the ultimate expression of everything we've learned at Volumio in crafting award-winning digital audio players.
WHY PRECISO?
BUILT ON THREE CORE DESIGN PILLARS
HYPER-SYMMETRICAL DUAL MONO DACS

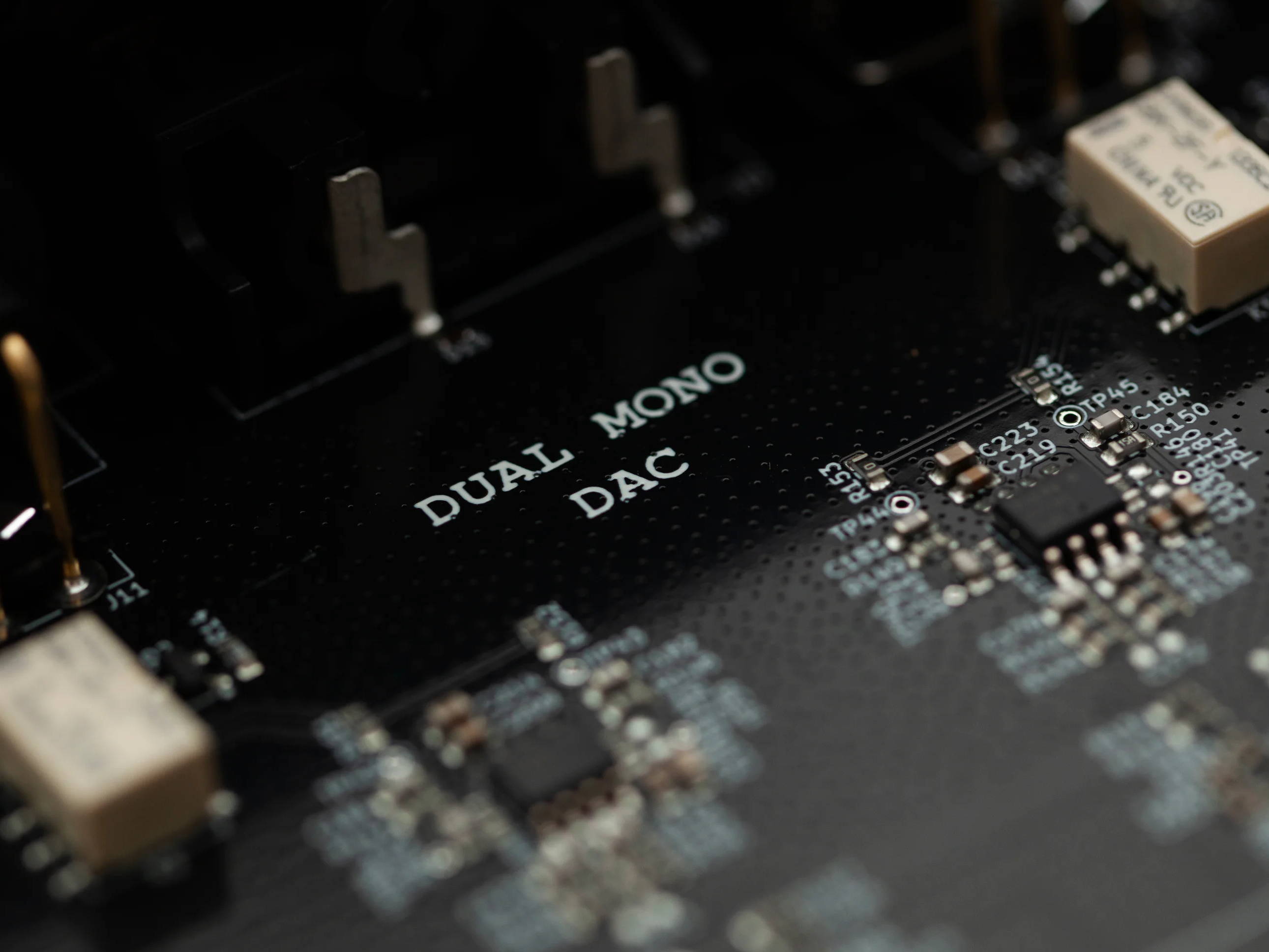

Dual ESS ES9039Q2M in perfectly mirrored, isolated circuits for absolute channel separation, lowest crosstalk and extreme optimization of the DACs signal path.
DUAL LINEAR POWER ARCHITECTURE
Independent power regulation for analog and digital paths ensures a noise-free signal
BEST IN CLASS WHERE IT COUNTS
Precision MEMS clock, premium OPAMPs, SMD design for ultra-low interference and highest stability, input power filtering, and an ASIC USB interface: all chosen to maximize audio integrity without excess
HIGH-PRECISION DAC ARCHITECTURE WITH RIVO+ COMPATIBILITY

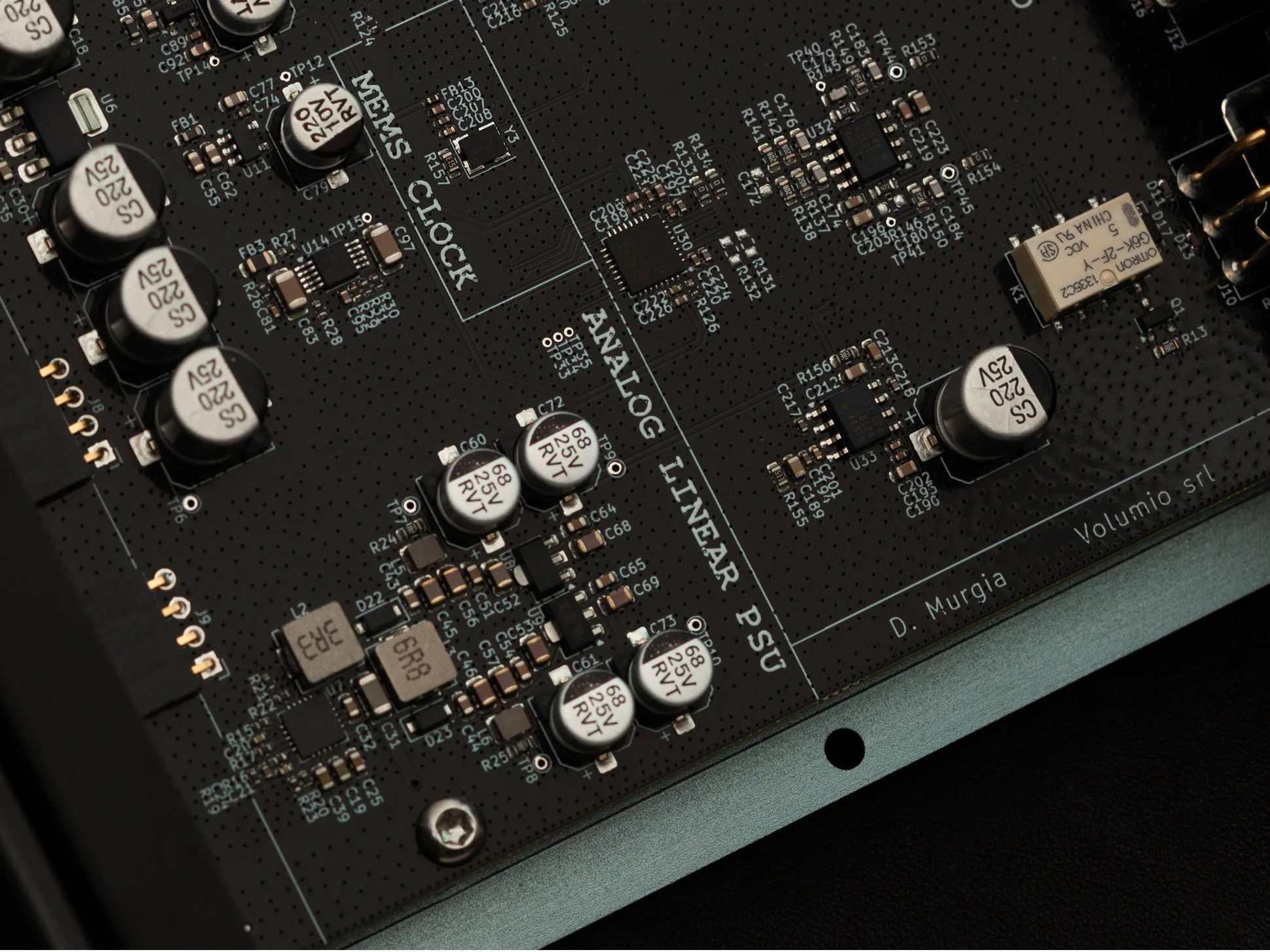

Preciso features a dual internal linear power supply, with separate regulation for the analog and digital sub-system. This complete isolation reduces interference, lowers the noise floor, and enhances dynamic range.

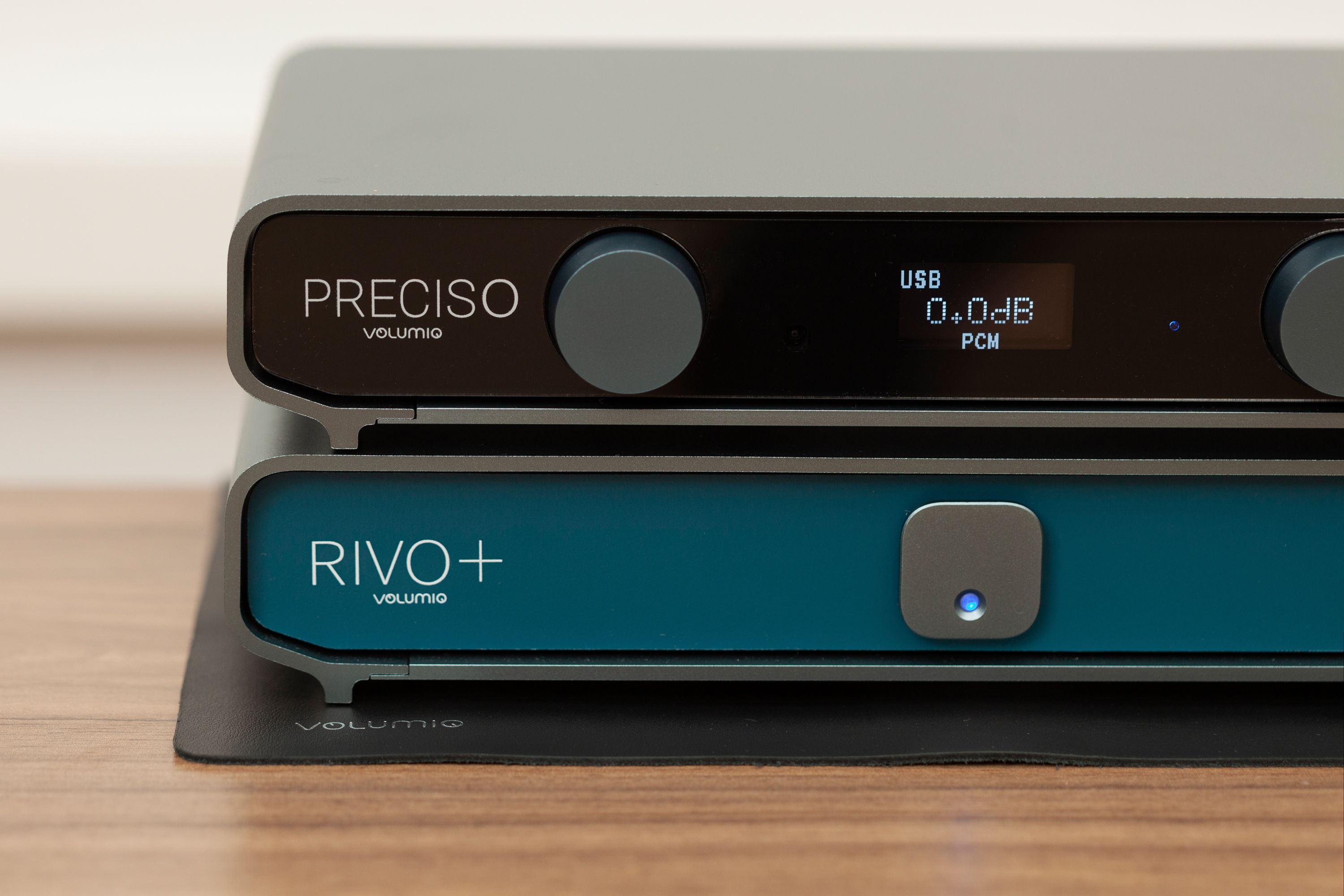

When paired with RIVO+ , Rivo or any dedicated transport, Preciso becomes part of a fully optimized digital chain. Preciso uses the same dedicated USB ASIC found inside RIVO+. This ensures pristine data transfer, precise clocking, and optimal analog performance. Preciso can be also used as a Pre-Amp with hardware gain control for direct integration with power amplifiers.
DIGITAL THAT DELIVERS
Preciso combines a dedicated ASIC USB controller for bit-perfect, ultra-low jitter transfer with the highest-grade operational amplifiers for exceptional analog performance.
OUTSTANDING PERFORMANCE INDICATORS
With a THD+N of -122.5 dB, Preciso operates at the measurement threshold of today's most sensitive audio test equipment, delivering exceptionally clean and accurate sound reproduction.
PRECISION CLOCKING AND SYMMETRICAL DESIGN

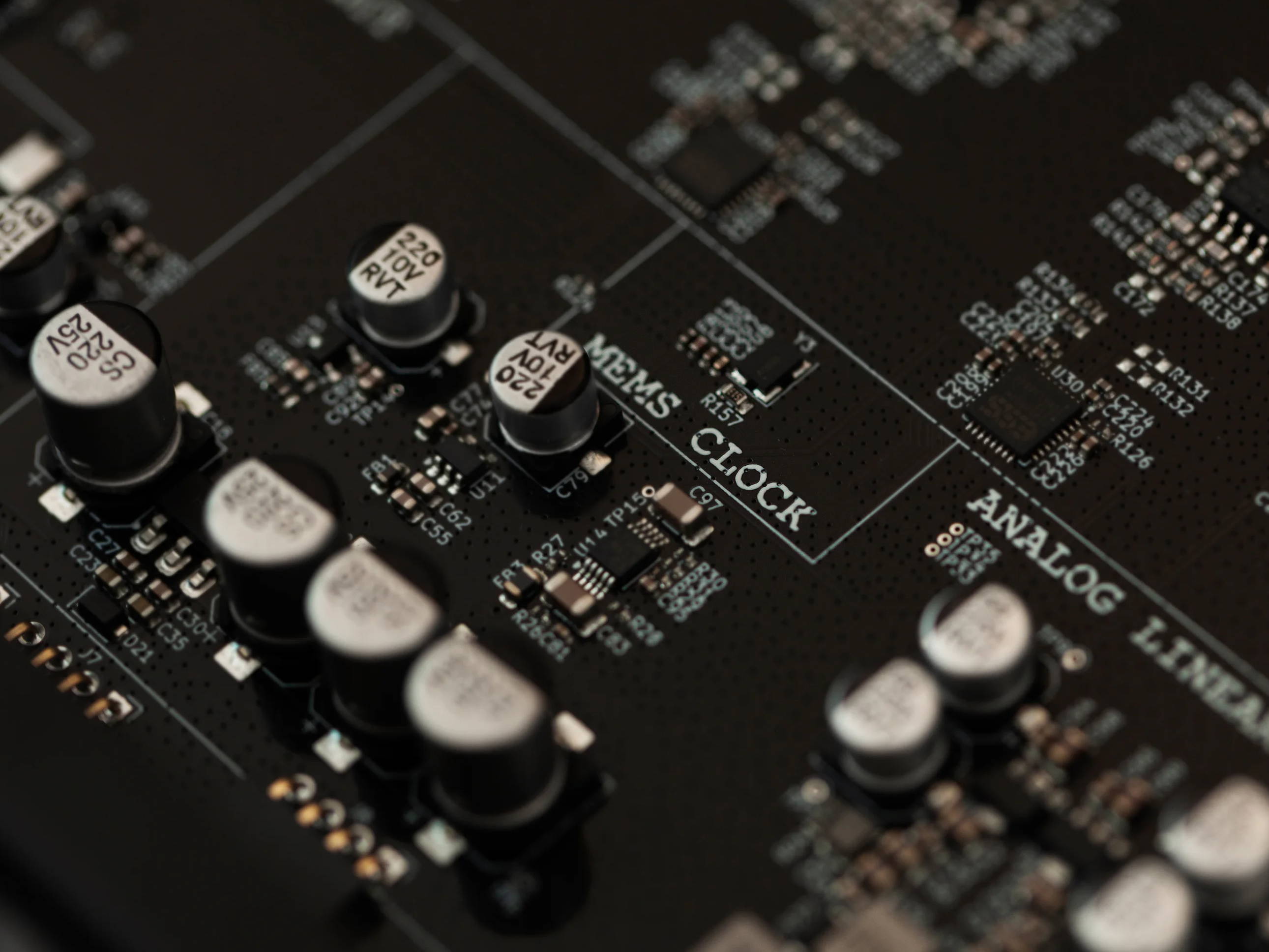

Preciso’s precision starts with a single high-accuracy MEMS clock driving both DACs for impeccable timing and coherence. Its hyper-symmetrical design features perfectly matched circuit paths for each channel, with carefully selected SMD components chosen not only for compactness but also for superior electrical performance, and C0G capacitors that ensure stable, distortion-free performance over time and varying temperatures.
INCLUDED IN THE BOX
- Volumio Preciso
- USB Cable
- NFC Information Card
- 5V, 3A Power Supply
Audio Overview
Digital USB Input
Up to PCM 768kHz/32bit and DSD512
Digital S/PDIF Optical Input
Up to PCM 192kHz/24bit
Digital S/PDIF Coaxial Input
Up to PCM 192kHz/24bit
Digital I2S over HDMI Input
Up to PCM 768kHz/32bit and DSD512
Stereo Analog Balanced Output
Up to 4 Vrms
Stereo Analog Unbalanced Output
Up to 2 Vrms

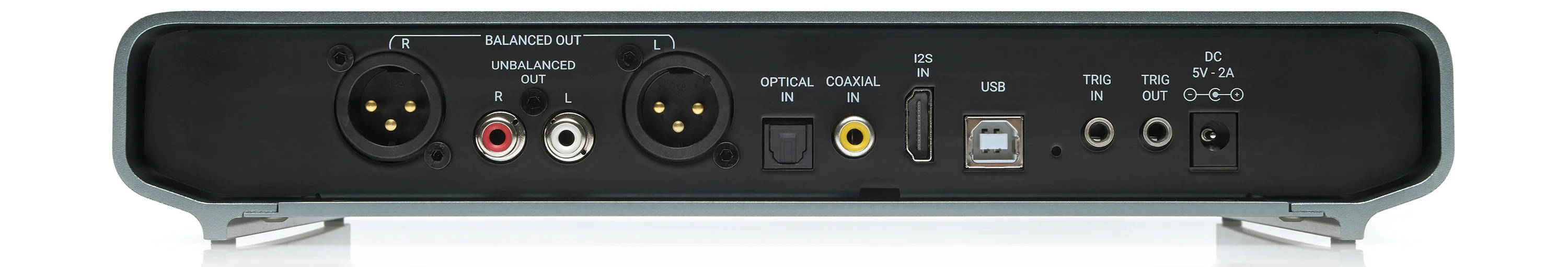

Hardware Specifications
Input Power
5V DC / 2A
Input Power Connector
Barrel Jack 5.5mm (outer diameter) / 2.1mm (inner diameter)
Input Power Polarity
Positive
Trigger In Port
3.5mm jack, positive on tip
Trigger Out Port
3.5mm jack, positive on tip
USB Input
USB 2.0 Type-B connector
S/PDIF Coaxial Input
RCA connector
S/PDIF Optical Input
TOSLINK connector
Stereo Unbalanced Output
RCA connectors
Stereo Balanced Output
XLR connectors
Design
Designer
Design Narratives Ltd.
Weight
2.25 kg
Dimensions
27x15x5 cm
User Manual
Access the Volumio Preciso User Manual Below:
