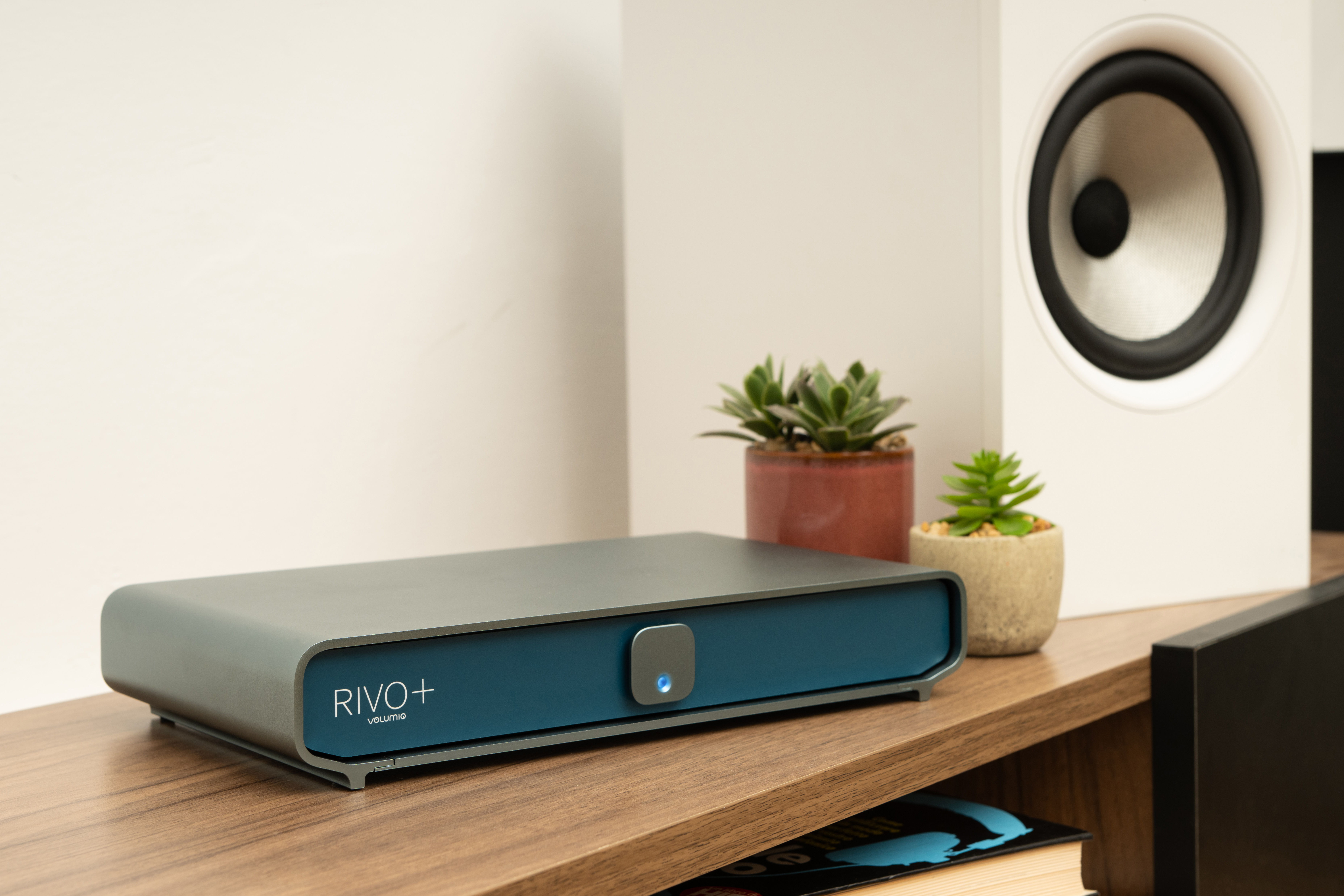

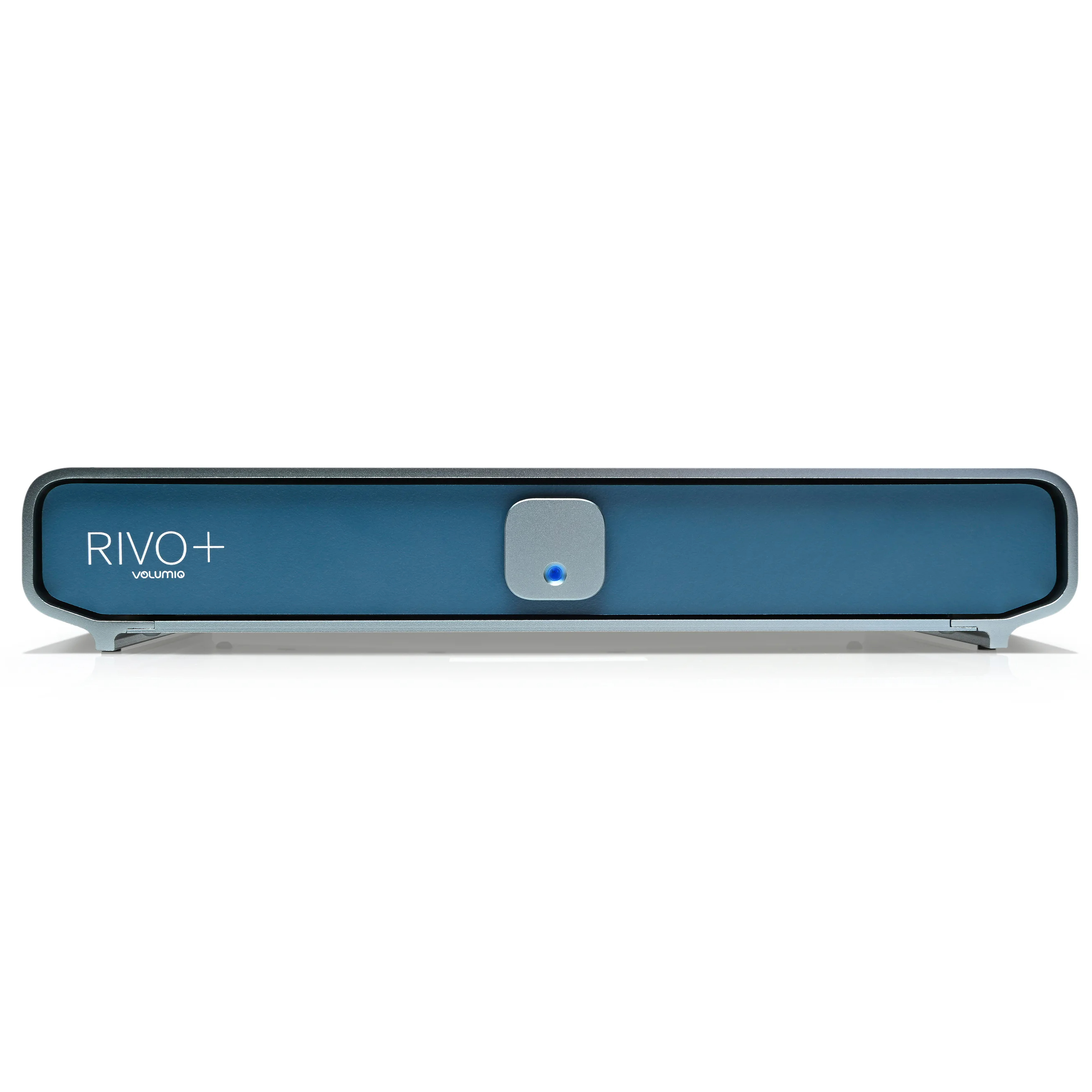

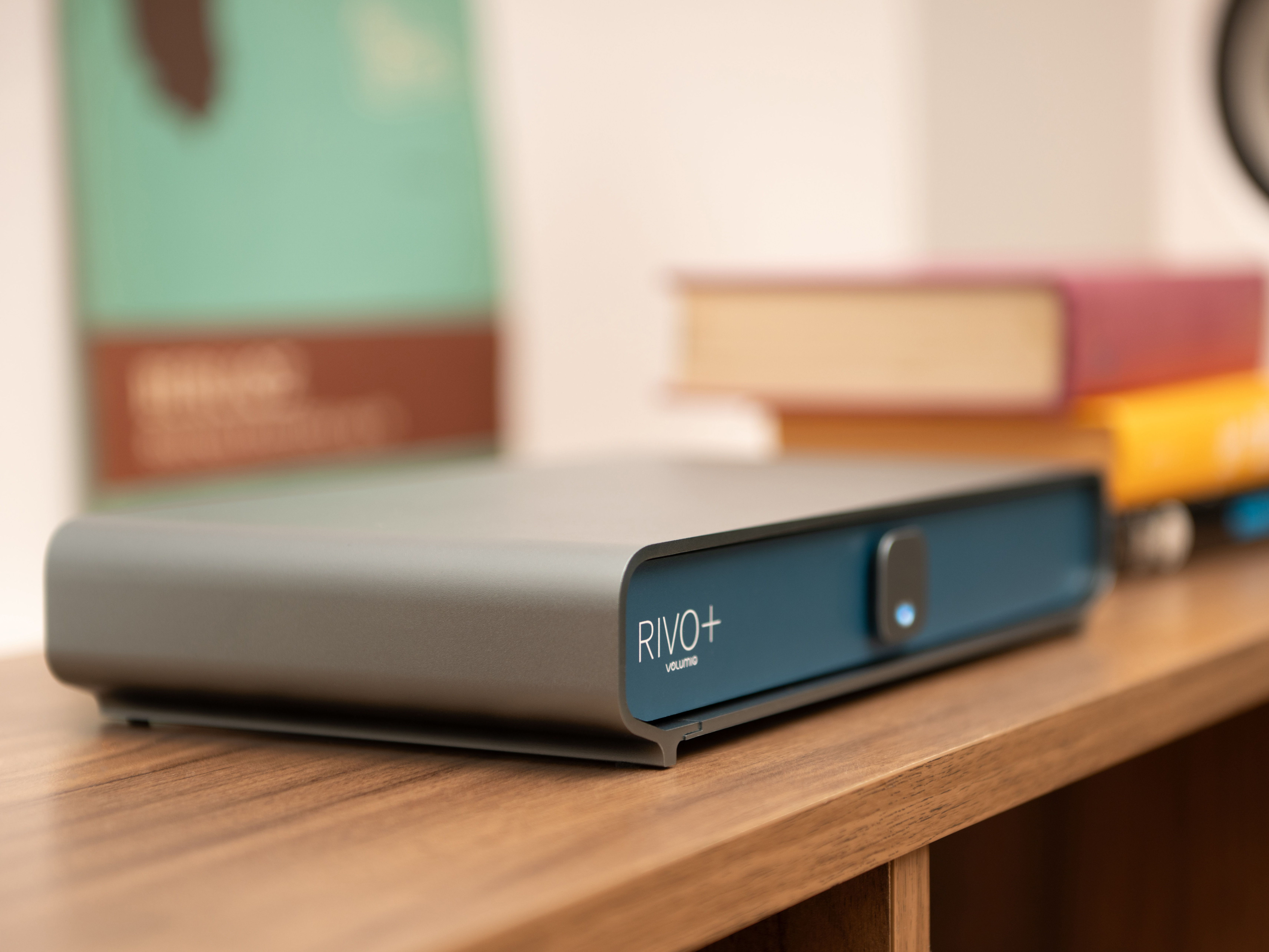

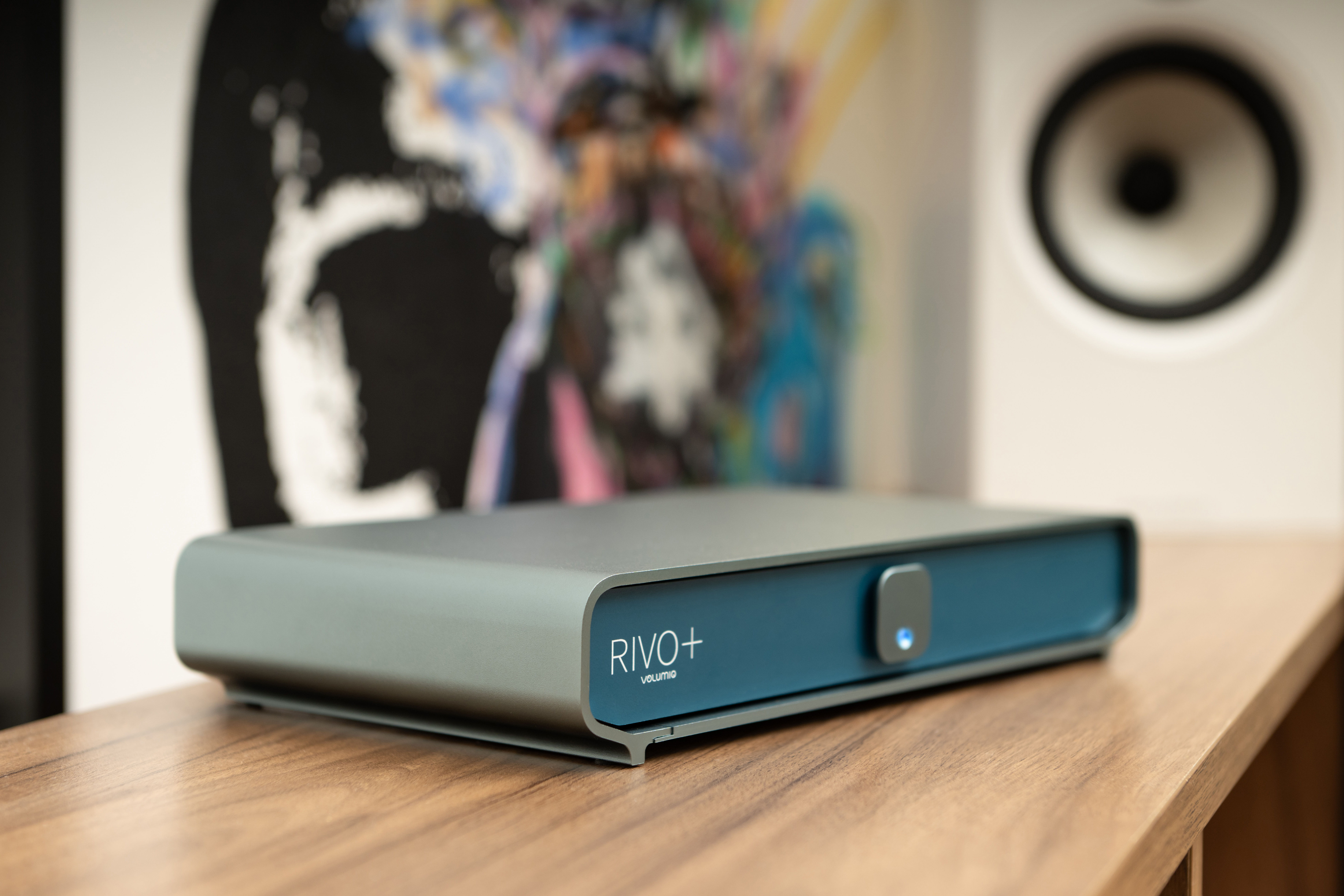

The Rivo Plus builds on the acclaimed Rivo model, now featuring a dedicated ASIC for enhanced S/PDIF and AES-EBU outputs and upgraded MEMS clocks in the USB HUB IC. This delivers pure digital sound and seamless connectivity for audiophiles.
Includes all Volumio Premium features
Rivo+ lets you stream from your favorite music services
Bring your content from local or network-attached drives and play internet radio.
Enjoy Music From Your Favorite Sources
The Ultimate Digital Transport
The Rivo+ is the enhanced version of our award-winning Rivo digital transport. Engineered based on user feedback, Rivo+ elevates the already excellent qualities of the original.
Key upgrades include a dedicated ASIC for cleaner S/PDIF and AES-EBU outputs, improved MEMS clocks for lower jitter, I2S over HDMI connectivity for compatible high-end DACs, and a 12V trigger to power on/off other components.
If you demand the pinnacle of digital transport performance, the Rivo+ is the solution.

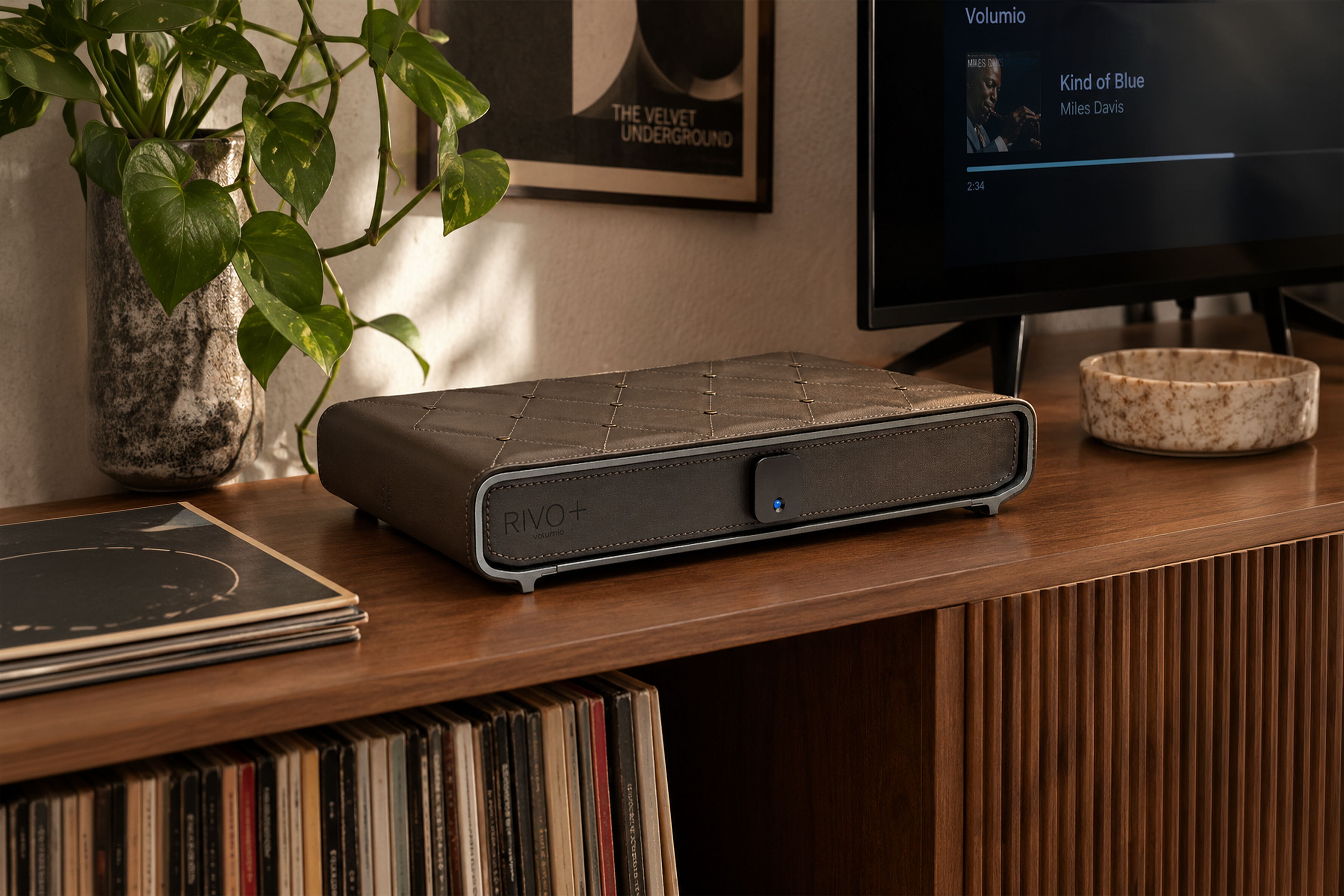

Rivo+ is also available in a Special Edition, featuring a refined brown leather finish.
A distinctive version that combines Volumio’s signature sound with timeless Italian-inspired craftsmanship.
Enhanced Audio Via I2S/DSD Over HDMI For Discerning Listeners
The Rivo+ features a dedicated ASIC to generate the S/PDIF and AES-EBU output signals, offloading this crucial task from the CPU. This specialized integrated circuit is designed to produce these digital output signals with uncompromising precision, free from any potential interference or jitter introduced by the main processor.
Powering this dedicated ASIC is a high-quality MEMS (Micro-Electro-Mechanical Systems) clock, which provides an exceptionally stable and low-jitter timing reference. Coupled with low-noise voltage regulators, this enhancement to the RIVO+ ensures the output signals maintain the utmost purity and refinement.
Multiple Connectivity Options to Explore
S/PDIF and AES-EBU outputs generated by a dedicated ASIC with low-noise power supply + I2S/DSD over HDMI interface for optimized connection and enhanced audio performance.
Engineered For Signal Precision
Upgraded MEMS clocks in the USB HUB IC enhance reclocking and signal integrity for Rivo+ especially when connected to the USB DAC port. This delivers exceptional jitter and frequency stability, reducing susceptibility to temperature changes and aging for consistently high-quality audio output.
Easy Setup

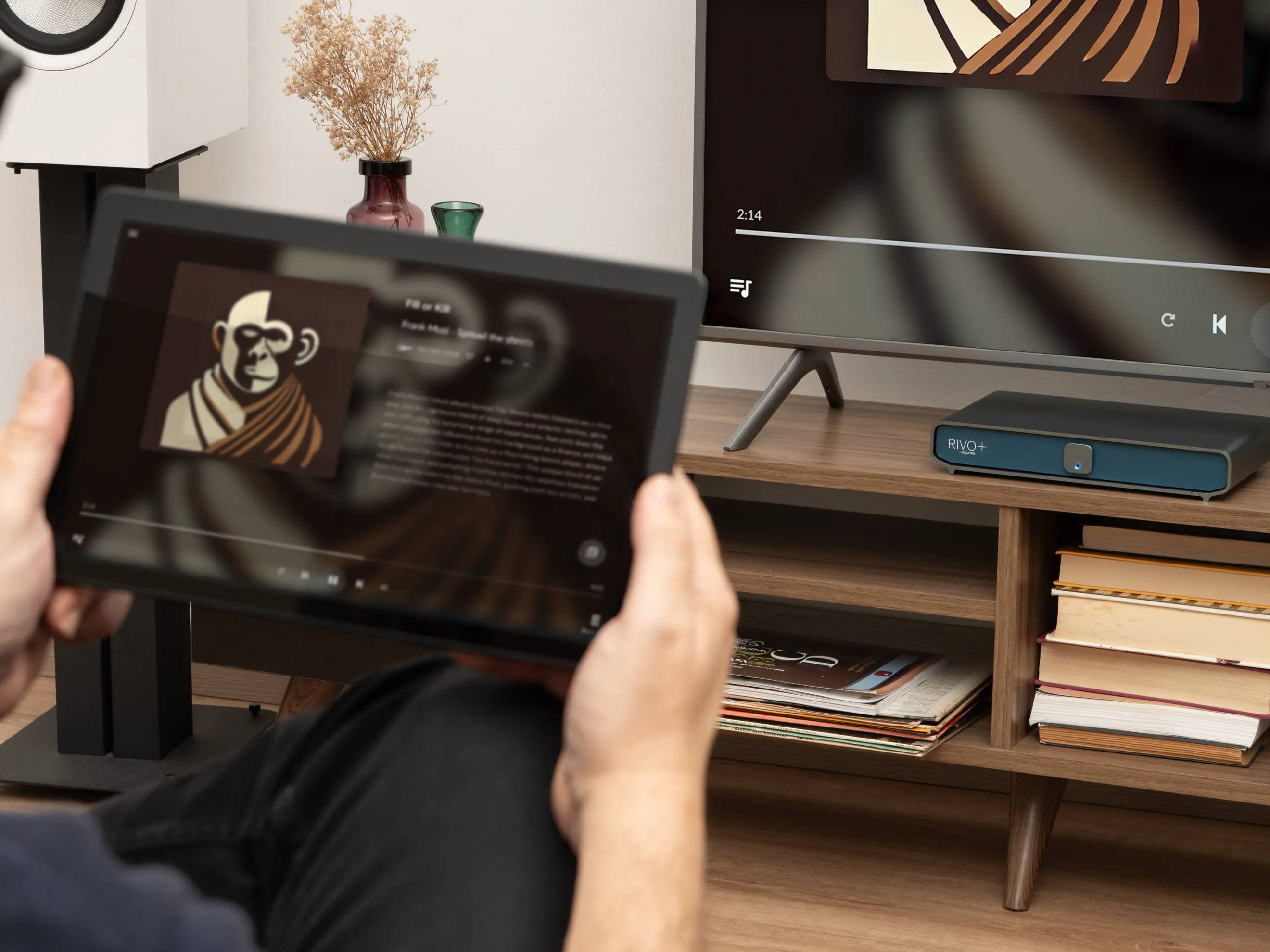

Getting started just takes a couple of minutes with the Volumio official iOS and Android apps
Made in Italy
All Volumio products are proudly designed and assembled in Florence Italy
Roon Ready
All Volumio products are Roon Ready certified by Roon Labs. allowing seamless integration with Roon
Volumio Premium Built In
On board, the Rivo+ is the latest version of Volumio – Volumio AI- that incorporates Supersearch an AI-powered search function that is meant to optimize your music discovery.
Volumio OS comes with a Multi-room capability that creates an integrated environment with other Volumio stations in your home.
Included in the box
Volumio Rivo+
5V, 3A Power Supply
NFC/QR CODE Information Card
Audio Specifications
USB OUTPUT: Up to PCM 1536 kHz / 32 bit and DSD1024 (with multiroom disabled)
I2S OVER HDMI OUTPUT: Up to PCM 768 kHz / 32 bit and DSD512 (DSD256 with multiroom enabled)
S/PDIF COAXIAL OUTPUT: Up to PCM 192 kHz / 24 bit and DSD64 via DoP
AES/EBU DIGITAL OUTPUT: Up to PCM 192 kHz / 24 bit and DSD64 via DoP
SUPPORTED FORMATS: DSD, WAV, FLAC, Alac, Aac, Vorbis, Mp3 and others
SUPPORTED SERVICES: Airplay via Shairport Sync, Spotify Connect, Tidal/Tidal Connect, Qobuz/Qobuz Connect
UPNP/DLNA: Renderer with Open Home support
PLUGINS: Youtube, Squeezelite, Radio Paradise, Podcasts, Pandora, Fusion DSP, Roon Bridge, Soundcloud, Mixcloud
Hardware Specifications
USB DAC OUTPUT: USB-A 2.0 with power filtering
USB: 1× USB-A 2.0, 1× USB-A 3.0 (USB Flash Drive and HDD/SDD)
I2S OUTPUT: HDMI with adjustable pinout routing

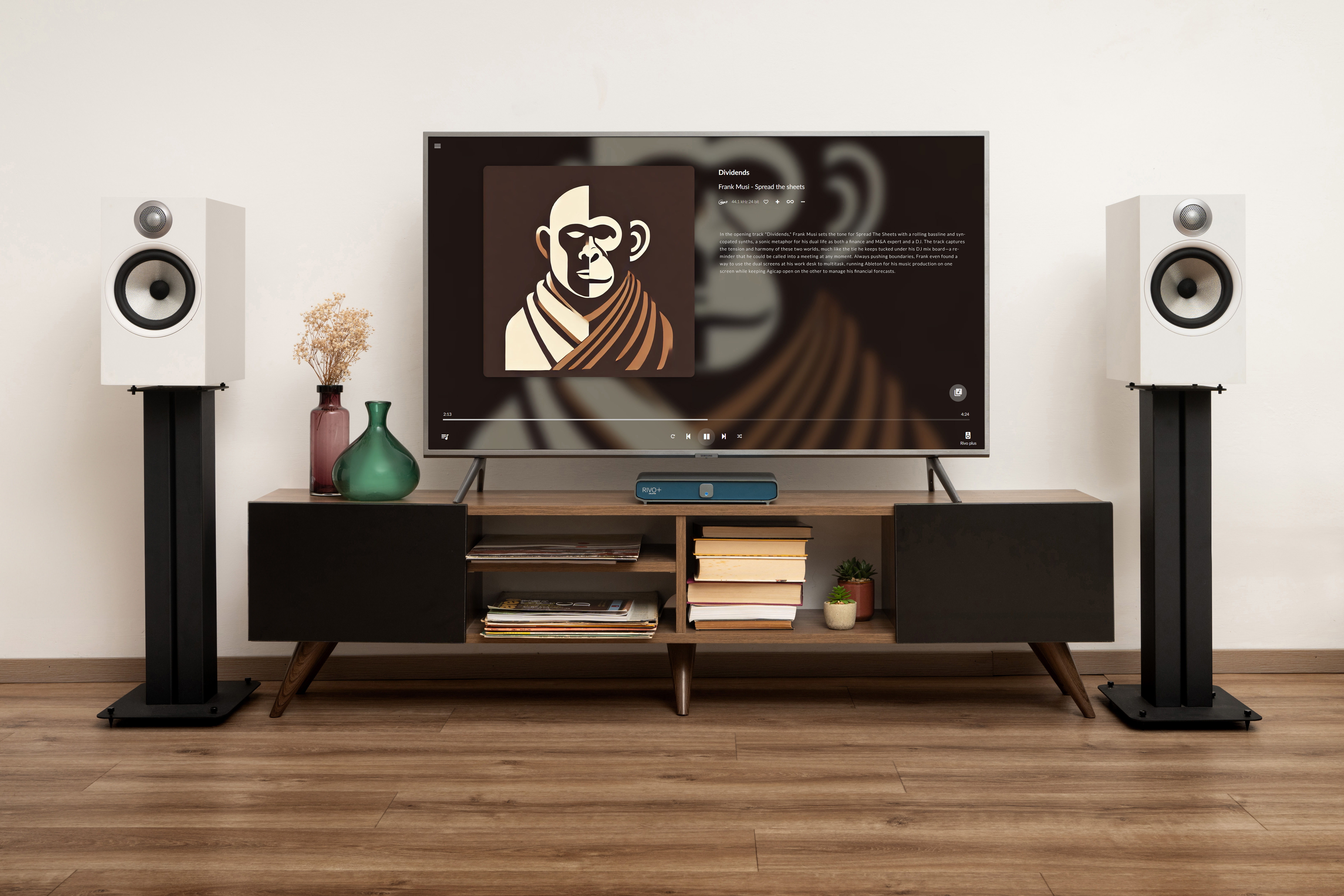

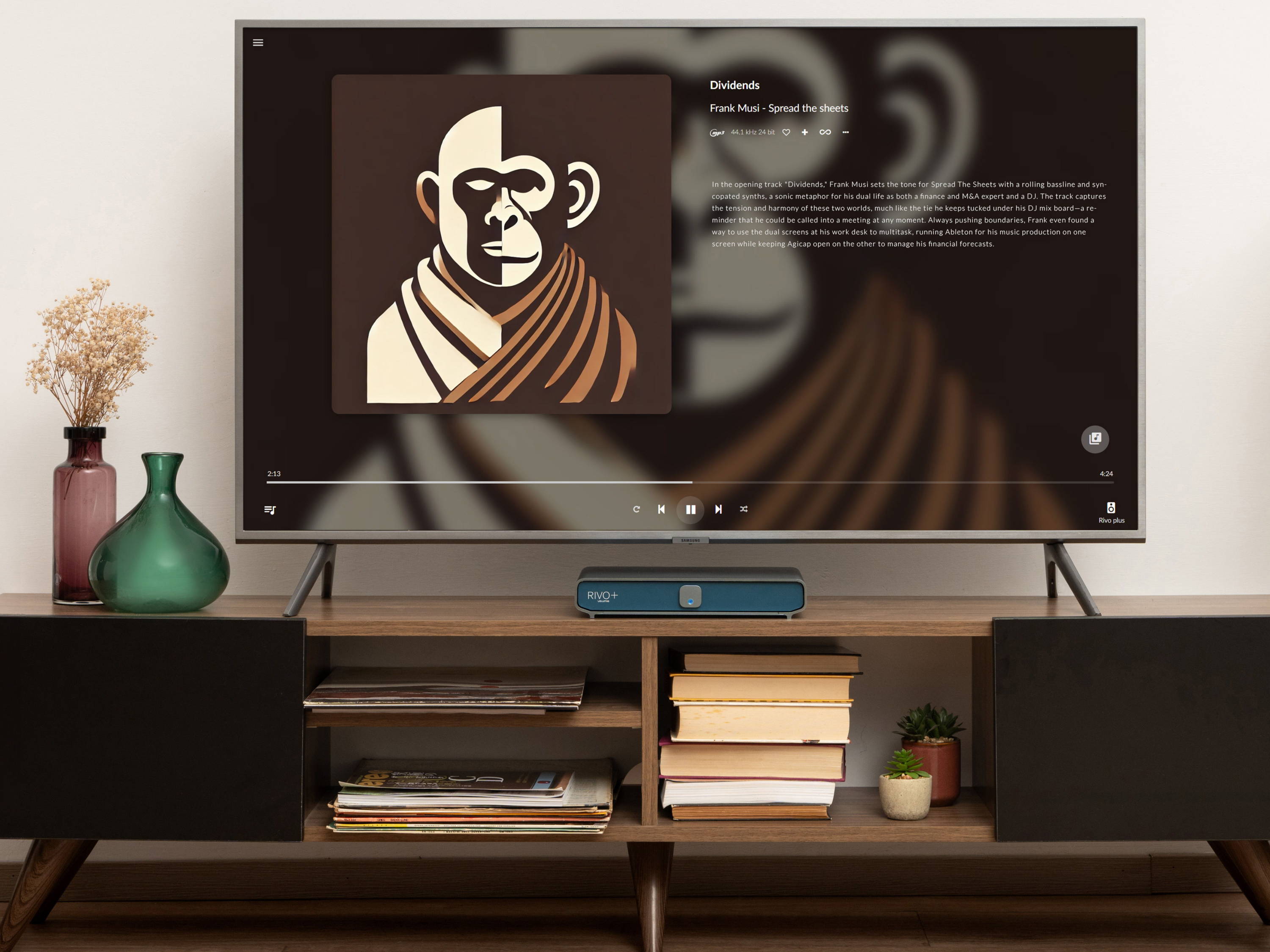

VIDEO OUTPUT: Volumio OS app mirroring over HDMI up to 4K / 60 fps
TRIGGER OUT: 3.5 mm jack (12 V, positive on tip)
LAN: Gigabit 10/100/1000M
Wi-Fi: Wi-Fi 802.11a/b/g/n/ac (2.4G and 5G)
BLUETOOTH: 5.0
CPU: Amlogic S905D3, Quad Core 1.9 GHz
RAM: 2 GB DDR4
INTERNAL STORAGE: 16 GB eMMC
POWER: 5 V DC / 3 A
POWER INPUT: Barrel jack 5.5mm x 2.1mm (positive polarity)
Design
PRODUCT DIMENSIONS: 27 (L) x 15 (P) x 5 (A) cm
PRODUCT WEIGHT: 2,5 kg
User Manual
Access the Volumio Rvio+ User Manual below:
